Brand Name : KAFA
Model Number : Steel workshop-014
Certification : ISO 9001
Place of Origin : Qingdao, China
MOQ : 1000 square meter
Price : Negotiate
Payment Terms : L/C, T/T, Western Union
Supply Ability : 20000 square meter/month
Delivery Time : 30-45days
Packaging Details : Nude pack
Size : As per requirement
Main material : Q345b,Q235b
Wall : EPS, Glass wool, Rock wool, PU sandwich panel or single sheet
Roof : EPS, Glass wool, Rock wool, PU sandwich panel or single sheet
Door : PVC Aluminum sliding /roller door.
Color : As your request
Windows : PVC Aluminum windows
Frame : Weld steel structure frame
Usage : warehouse,workshop
Life time : 50 years
Metal Steel Frame Factory Structure Building
Technical Parameters
Description | ||
Main Components | Base | Concrete and steel foundation anchor bolts |
Main frame | Hot Rolled or Welded H-Section Steel | |
Material | Q235B, Q345B or others as per client's requests | |
Purlin | C/Z purlin: Size from C120~C320, Z100~Z320 | |
Bracing | X-type or other type, angle or round pipe | |
Bolt | Plain or High-strength bolt | |
Roof & wall | EPS / Rockwool / PU Sandwich panel or colored steel sheet | |
Door | Electric flat door | |
Window | Aluminum or PVC window | |
Surface Coating | Anti-rust Paint or Hot Dip Galvanize | |
Sheet | 0.3-0.8mm galvanized or color coated steel sheet | |
Accessories | Translucent skylight sheet, Ventilators, etc. | |
PVC Down pipe, Galvanized / SS304 gutter, etc. | ||
Usages | 1. Workshop, warehouse, plant, storage | |
2. Steel web frame structure | ||
3. High rise building project | ||
4. Others steel structure buildings | ||
Packing | Main steel frame without packing load in 40' OT or 40'HQ | |
Roof and wall panel load in 40' HQ | ||
Drawing | By client or RPIC | |
Design Parameters | If need design from Honkae, please supply following parameters: | |
1) Length, width, eave height, roof apex | ||
2) Live Load, Wind Speed, Seismic Load, Snow Load etc. | ||
4) Quantity and sizes for doors and windows | ||
5) Other information if necessary |
Light steel structure workshop design
![]() |

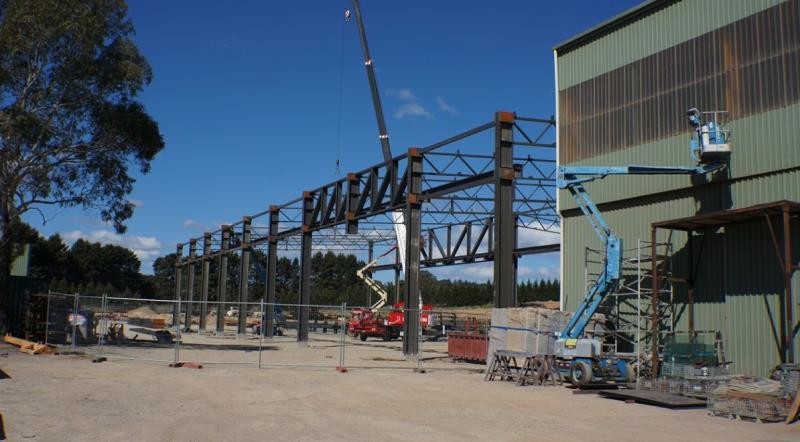

PVC Windows EPS Wall Q345b Steel Structure Workshop Images |
